GPS Antenna Module

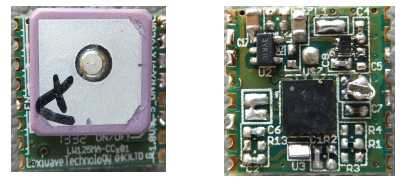

LW125MA-P is a highly integrated GPS RF Antenna Module designed for GPS application with low power, low cost and ultra-small size. The device consists of SiRFstarIV GPS chip, Lexiwave’s highly efficient antenna and a Low Noise Amplifier for best GPS reception sensitivity and antenna pattern.

Its integrated SAW 2.4GHz notch filter coupled with DSP based jammer removal gives superior interference rejection on, Cellular phone, Bluetooth and WiFi signals. It is particularly suitable for smart phone, tablet PC applications in which multiple RF signals may co-exist.

LW123MA-P operates on a 3V positive power supply with 1.8V CMOS compatible UART 9600bps host processor interface. The module can enter a micro-power mode while maintaining Hot Start TTFF condition while consuming only 50µA.
